Capture All the Signals You Want Easily, Accurately, and Reliably...
One instrument contains everything you need to observe multiple signals on analog/logic mixed circuits:
DL7440: 4 analog channels and 16-bit logic input
DL7480: 8 analog channels and 16-bit logic input

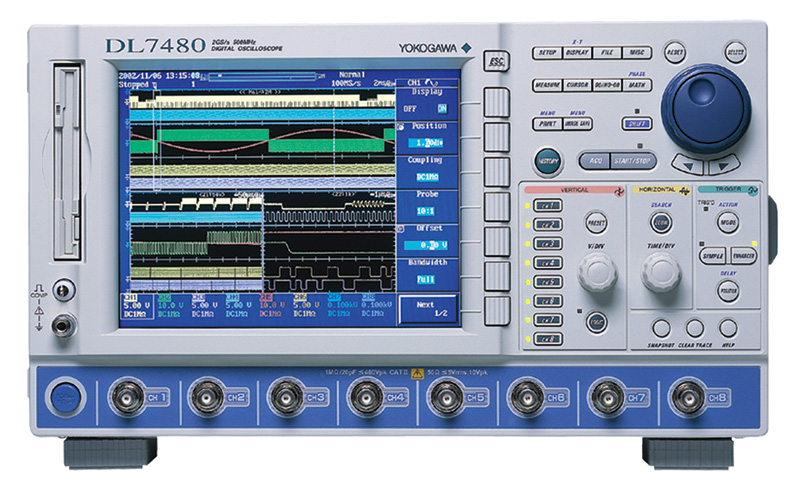

The DL7400 Series includes 4 and 8-channel analog input models. Each model has up to 16-bit logic inputs as standard. All these inputs come in a convenient, benchtop-sized instrument. In additon to capturing up to 16 logic signals, the DL7400 Series lets you simultaneously measure up to 8 analog signals without needing to synchronize two separate oscilloscopes. The DL7440 and DL7480 SignalExplorer oscilloscopes are designed for users who want an easy, efficient solution in one unit for handling measurements that required two or more units in the past.
|
|
 |
| Example of Logic Probe Connection |
Logic Probe (701980) |
Logic Probe (701981) |
 |
 |
 |
