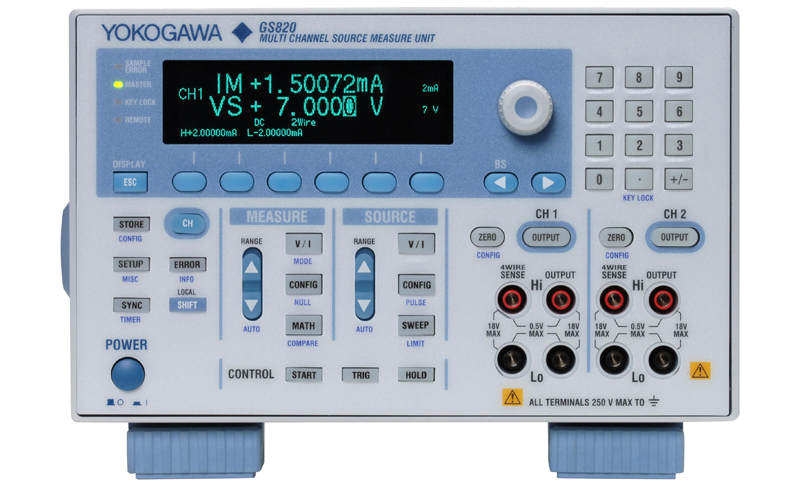

Gs820 multi channel source measure unit |
|
|
- Isolated 2-channel source and measurement function
- Source and measurement ranges: 7 V and 3.2 A or 18 V and 1.2 A
|
|
|
|
|
|
|
|
|
|
|
- Details
- Specification
- Accessories
Four-quadrant operation consisting of source operation (current source) and sink operation (current sink) is available with ranges up to 7 V and 3.2 A or 18 V and 1.2 A. The output and measurement resolutions are 5.5 digits. Other features include:
- Isolated 2-channel source and measurement function
- Source and measurement ranges: 7 V and 3.2 A or 18 V and 1.2 A
- Minute current ranges with 200-nA or 1-pA resolution
- Generate arbitrary waveforms consisting of up to 100,000 points at 100-μs intervals
- Channel expansion through master-slave synchronization link
- Fast test speeds
- 16-bit digital I/O (model 765602)
|
2-channel display example
(256 x 64 dot matrix display)
|
|
Source and Measurement Range
Four-quadrant operation consisting of source operation (current source) and sink operation (current sink) is available with ranges up to 7 V and 3.2 A or 18 V and 1.2 A. The output and measurement resolutions are 5.5 digits.
- Voltage ranges:
- 200 mV, 2 V, 7 V, and 18 V
- Maximum output current:
- ±3.2 A (at an output voltage of ±7 V or less) ±1.2 A (at an output voltage of ±18 V or less)
- Current ranges:
- 200 nA, 2 µA, 20 µA, 200 µA, 2 mA, 20 mA, 200 mA, 1 A, and 3 A
- Maximum output voltage:
- ±18 V (at an output current of ±1.2 A or less) ±7 V (at an output current of ±3.2 A or less)
|
|
|
