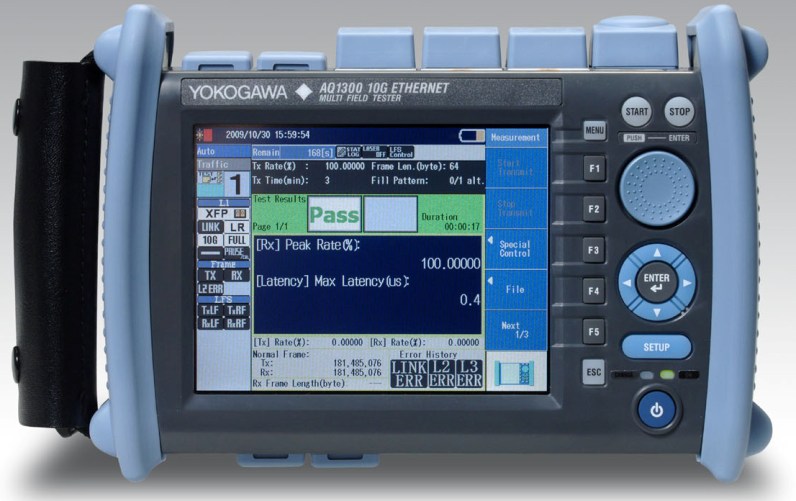

Aq1300 mft-10gbe 10 gigabit ethernet handheld tester
  • This compact, lightweight handheld tester is optimized for the commissioning
  • , network path testing and maintenance of 10M, 100M, 1G and 10G Ethernet networks.
  • The AQ1300 is suited for Carrier and Enterprise
  • Ethernet networks and services supporting both electrical and optical testing.
  • The integrated functions, auto test mod
Write a Review
Write a Review and share your opinions with others. Please be sure to focus your comments on the product
Category Name*:
Product Name*:
Email Address*:
Value for Money:
Print this page
  • Details
  • Specification
  • Accessories

Compact and lightweight handheld tester with functionality optimized for the network path testing and maintenance of 10M to 10G Ethernet networks. Integrated functions and field optimized operations in one compact box. designed to improve work efficiency and quality.

World's Smallest-in-class 10GbE tester

217.5(W) x 157(H) x 74(D) mm

8.6"(W) x 6.2"(H) x 2.9"(D)

Under 1.5kg / 3.3 lbs

Robust structure suitable for field use including shock guards.

All functions in ONE for Network path test

Optical and electrical test ports for 10M to 10G Ethernet.

Optical power meter (optional).

Simple operation with built-in functions

Auto-Test with pre-defined test procedures.

In-band remote control simplifies far-end operations.

Intuitive and responsive GUI

Optimized for the network path test and maintenance.

Easy to operate with a single hand with the keys and knob set on the right side.

All test functions for commissioning in ONE

The AQ1300 measures the quality of Ethernet interfaces for network devices and systems, providing pass/fail analysis.

  • Service Quality
  • Throughput, Frame Loss, Latency, BERT (Bit Error Rate Test), Idle time (IFG)
  • L2/L3 Loop-back
  • Pass/Fail Analysis
AQ1300 Test Signal
