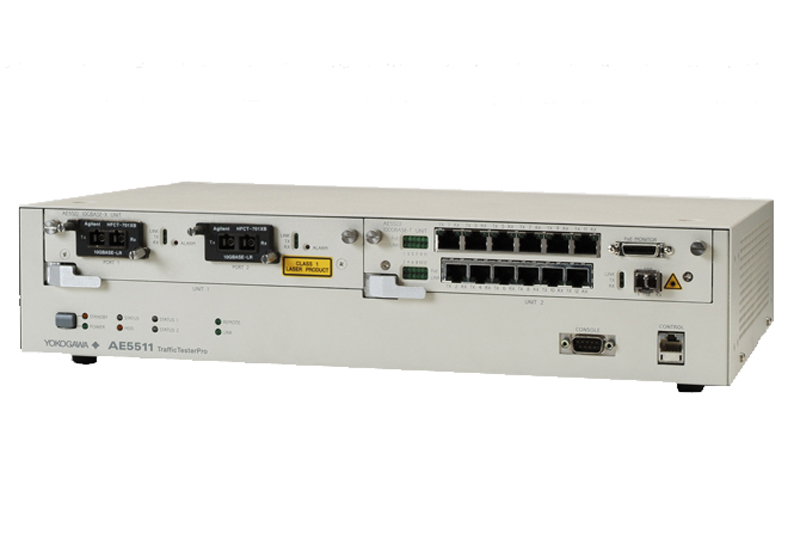

AE5511 unit line up

Module	Interface	Number of ports
AE5520 10/100 BASE-T unit	10 BASE-T, 100 BASE-TX	16 ports
AE5521 1000 BASE-X unit	1000 BASE-SX, 1000 BASE-LX	4 ports (GBIC)
AE5522 10 GBASE-X unit	10 GBASE-LR, 10 GBASE-ER, 10 GBASE-SR	2 ports (XENPAK)
AE5523 1000 BASE-T unit/td>	10 BASE-T, 100 BASE-TX,1000 BASE-T	12 ports
AE5523 1000 BASE-T unit/td>	1000 BASE-SX/LX	1 port (SFP)
AE5524 1000 BASE-X unit	1000 BASE-SX, 1000 BASE-LX

Function Table

Functionsx = Supported - = Unsupported			AE5520	AE5521	AE5522	AE5523	AE5524	Traffic mode	BERT mode
Login	Multi AE5511 control^*1,2		x	x	x	x	x	x	x
	Monitor mode^*3		x	x	x	x	x	x	x
	Multi user support (8 users)^*4		-	-	-	x	x	x	x
Setup	Autonegotiation	Speed DUPLEX, MDI/MDI-X	x	-	-	x	-	x	x
	Autonegotiation	Flow control	x	x	-	x	x	x	x
	Clock extraction setup ^*5		-	-	-	x	-	x	x
	RF Auto response		-	-	x	-	-	x	x
	Link UP/DOWN	Single	x	x	x	x	x	x	x
	Link UP/DOWN	Cycle	-	-	-	x	x	x	x
	PoE setup		-	-	-	x	-	x	x
	Transmission setup(constant/burst)		x	x	x	x	x	x	x
	End by (manual/count/time)		x	x	x	x	x	x	x
	Transmission mode (variable/fixed)		x	x	x	x	x	x	-
	Number of registered frames^*6		x	x	x	x	x	127	1
	Error frame settling	CRC error	x	x	x	x	x	x	x
	Error frame settling	Symbol error	-	-	-	x	x	x	x
	Preamble edit^*1		-	-	-	x	x	x	x
	Insert time stamp		x	x	x	x	x	x	-
	Insert sequence counter		-	-	-	x	x	x	-
	Variable frame length		x	x	x	x	x	x	x
	Variable field	1 variable field	x	x	x	x	x	x	-
	Variable field	4 variable field	-	-	-	x	x	x	-
	Insert mode setup	Single	x	x	x	x	x	x	x
	Insert mode setup	Cycle	-	-	-	x	x	x	x
	Oversize threshold		x	x	x	x	x	x	x
	Base filter setup		x	x	x	x	x	x	x
	Sequence error object setup		-	-	-	x	x	x	-
	BERT checked byte setup		-	-	x	x	x	-	x
	QoS setup		-	-	-	x	x	x	-
	Alarm setup		-	-	-	x	x	x	x
	Own port address setup	MAC, IPv4, and IPv6 addresses^*7	x	x	x	x	x	x	x
	Own port address setup	VLAN setup	-	-	-	x	x	x	x
	IPv4 emulation (ARP and PING)		x	x	x	x	x	x	x
	IPv6 emulation (NDP and PING)		-	-	-	x	x	x	x
	MAC address auto learn (IPv4)		x	x	x	x	x	x	x
	Auto address generation (IPv6)		-	-	-	x	x	x	x
	PING test setup^*1		-	-	x	x	x	x	x
	ETH-OAM setup^*3		-	-	-	x	x	x	x
	PHY register setup^*1		-	-	-	x	x	x	x
Transmit clock adjustment			-	-	-	x	x	x	x
Statistics	Transmission start/stop/reset		x	x	x	x	x	x	x
	Insert frame transmission start/stop		x	x	x	x	x	x	x
	Link down generation start/stop		x	x	x	x	x	x	x
	Bit error insertion		x	x	x	x	x	-	x
	LF transmission start/stop		-	-	x	-	-	x	x
	RF transmission start/stop		-	-	x	-	-	x	x
	Screen freeze/release		x	x	x	x	x	x	x
	Dynamic view/fixed view^*3		x	x	x	x	x	x	x
	Statistics result display^*8		x	x	x	x	x	x	x
	Alarm log display		-	-	-	x	x	x	x
	Statistics for each QoS		-	-	-	x	x	x	-
	Late collision detection		-	-	-	x	-	x	x
	Statistics calculation result display		x	x	x	x	x	x	x
	PING test result^*1		-	-	x	x	x	x	x
	CCM frame transmission start/stop^*3		-	-	-	x	x	x	x
	RDI bit insertion start/stop^*3		-	-	-	x	x	x	x
	ETH-OAM test result^*3		-	-	-	x	x	x	x
Capture	Capture filter setup		-	-	x	x	x	x	x
	Capture trigger setup		-	-	x	x	x	x	x
	Capture buffer setup		-	-	x	x	x	x	x
	Receive frame capture		-	-	x	x	x	x	x
	Link parner ability display		-	-	-	x	x	x	x
	Preamble capture^*1		-	-	-	x	x	x	x
	ETH-OAM capture^*3		-	-	-	x	x	x	x
	ETH-OAM capture setup^*3		-	-	-	x	x	x	x

These functions are available on AE5511 and TTPControlWindowE version R9.1.0.0 or later
